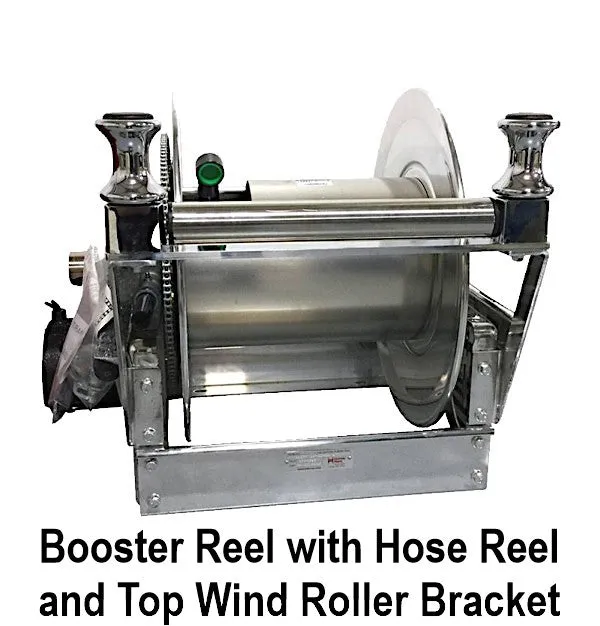

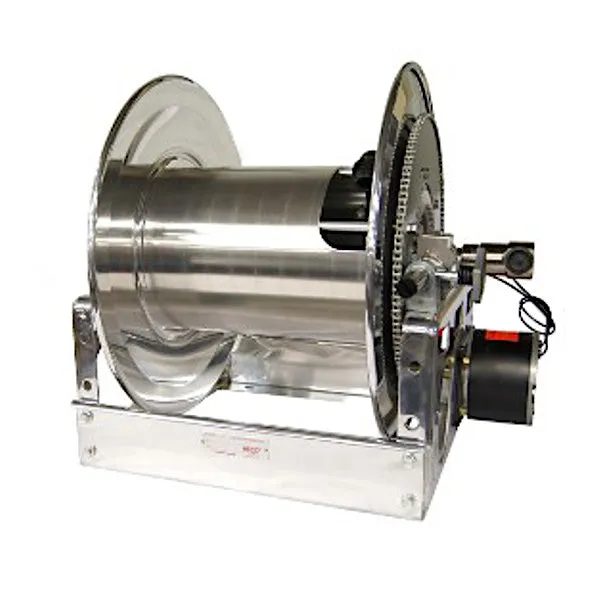

• Super Booster (SB) aluminum construction reels weigh up to 30% less than standard booster reels.
• Electric gear-driven crank rewind on this model.
• Pinion brake standard.
• Standard inlet: 1" 90° ball bearing swivel joint with 1" female NPT threads.
• Standard outlet: 1" male NST threads (1.375" x 8 threads per inch.)
• Other sizes and/or threads are available, please  our e-Fire Sales Team for info and pricing.
• The standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel, contact us via the link above for info/pricing).
• Rollers and roller mounting brackets are accessory items. Specify roller position.
• Standard pressures to 1000 psi (69 bar).
• Standard fluid temperatures from -15° F to 250 °F (-26° C to 121° C).
• Contact us via the link above for info/pricing for reels to operate at other pressures and temperatures.
• CAUTION: When using Niedner|Altra® hose, a special riser and/or larger drum diameter is required.
• Complete your purchase with a Hose roller, which is available , and a top mounting bracket, which is available .

Dimensions (See Diagram):

Length = 250"
Weight = 140 lbs.
A = 35"
B = 39.5"
C = 10.5"
D = 20.5"
E = 23"
F = 41.75"
G = 23.5"
H = 12.12"
X = 21.5"
Y = 16.75"
